Electrosurgical Return Electrodes: Matching Pads to Generators and Monitors

When an operating room fleet runs both Valleylab Return Electrode Monitoring (REM) generators and other isolated electrosurgical units (ESUs)—and reusable capacitive underbody pads are being restricted or phased down after FDA's 2023–2025 recall actions—hospital buyers and supplier-quality teams cannot treat patient return electrodes as interchangeable commodity pads. Standardizing or substituting a return electrode means matching three things at the order-code level: the generator's contact-quality monitoring (CQM) interlock, the physical cord and adapter path into the return receptacle, and the current labeled patient population.

Unlike surgical drape and drape-accessory specifications—which govern liquid barrier levels and accessory product codes around the sterile field—electrosurgical return electrodes are energy-circuit accessories regulated as Class II devices under 21 CFR 878.4400. A generator with contact-quality monitoring expects a split dispersive electrode it can measure across two conductive zones. A non-split pad cannot provide that signal, and Megadyne has stated that with its reusable capacitive pad in the circuit the CQM system does not warn of reduced contact area (Cedar/NICE EP141). Every approved pad-adapter-generator pairing in an item master should rest on model-number documentation from the current Instructions for Use (IFU) and verified FDA records, not on distributor cross-reference sheets or dated marketing brochures.

In hospital item masters and distributor catalogs, dispersive pads are often grouped with general operating-room consumables such as drapes, positioning straps, or skin-prep supplies. In engineering terms, however, a patient return electrode is half of a high-frequency surgical energy circuit. 21 CFR 878.4400 identifies an electrosurgical cutting and coagulation device and accessories as a device intended to remove tissue and control bleeding by use of high-frequency electrical current, and classifies it as Class II. FDA's product-code records for return electrodes list 510(k) premarket notification as the submission type.

When a procurement or supplier-quality team audits a candidate return electrode, four FDA sources establish the classification, clearance, and standards facts every specification sheet should capture:

• Product code ODR (electrosurgical patient return electrode): FDA's ODR record (21 CFR 878.4400, Class II, 510(k)) defines the device as a ground pad used to finish the circuit during electrosurgery: a single-use, non-sterile dispersive electrode with a pre-attached cord that adheres to the patient over the entire pad surface. Its technical description names a dual aluminum electrode under conductive hydrogel and states that both pad designs it describes are compatible with return electrode monitoring generator systems. That sentence describes the designs in the record, not every return pad on the market, so buyers still need to confirm whether an individual SKU is a split monitoring pad or a non-monitored pad.

• Product code GEI (electrosurgical cutting and coagulation and accessories): GEI (21 CFR 878.4400, Class II, 510(k)) is the broader code for electrosurgical devices and their accessories. Megadyne's reusable Universal Dual (0846), Universal Plus (0847), and Universal Dual Plus (0848) pads were found substantially equivalent under GEI on July 12, 2024 (received November 13, 2023) in 510(k) K233644—the same 510(k) number that FDA's recall record for 0848 carries.

• FDA 510(k) guidance for electrosurgical devices: The GEI record links FDA's final guidance Premarket Notification (510(k)) Submissions for Electrosurgical Devices for General Surgery (March 2020), written to help manufacturers prepare 510(k) submissions for these devices; it notes that they may also be called radiofrequency (RF) or high-frequency (HF) devices. Guidance describes FDA's current thinking; it is not itself a regulation.

• IEC 60601-2-2 recognition transition (2026–2029): FDA recognizes IEC 60601-2-2 Edition 6.1 (2023-02, consolidated, corrected 2025-11) as a complete standard under recognition 6-521, entered on May 25, 2026, and lists both ODR and GEI among the covered product codes. Recognition 6-521 supersedes 6-389 (Edition 6.0, 2017-03); FDA will accept declarations of conformity to Edition 6.0 in premarket submissions only until July 1, 2029. The record's scope summary also lists, among the sixth edition's technical changes, a new requirement for adult neutral electrodes to be contact quality monitoring neutral electrodes. The record does not reproduce clause text and is not a verdict on any catalog SKU, so ask the supplier which edition its declaration of conformity cites rather than inferring compliance from a catalog page.

In monopolar electrosurgery, high-frequency current leaves the active surgical instrument, passes through the patient, and returns to the electrosurgical generator through the dispersive return electrode. If the return path’s effective contact area shrinks—because an adhesive pad partially peels, tents over a bony prominence, or loses conductive contact—current density rises at the remaining contact zone and can cause a severe dispersive-electrode burn.

To reduce that risk, many electrosurgical generators include a contact-quality monitoring (CQM) circuit; Medtronic/Valleylab calls its version Return Electrode Monitoring (REM). The independent NHS technical assessment prepared by Cedar for NICE (EP141) and a 2024 peer-reviewed review by El-Sayed, Saridogan, and El-Sayed (Facts Views & Vision in ObGyn) describe the same dependency on pad geometry:

1. Split-electrode architecture: Split pads have two conductive areas side by side on a single pad, separated by a small non-conductive gap (Cedar/NICE EP141). FDA's ODR record describes the same construction as a dual aluminum electrode (FDA ODR record).

2. Continuous impedance check: A generator with contact-quality monitoring watches the current flowing between the two conductive areas via the patient (Cedar/NICE EP141); Medtronic describes its REM system as monitoring patient impedance levels (Medtronic PolyHesive product page).

3. Alarm and shutoff: If a split pad starts to peel, a monitoring generator alarms and stops. El-Sayed et al. write that the CQM circuit detects increased impedance from partial detachment of the split dispersive electrode and automatically stops the electrosurgical unit, and that dispersive-electrode burns have rarely occurred since CQM was widely applied in the 1980s (El-Sayed et al., 2024).

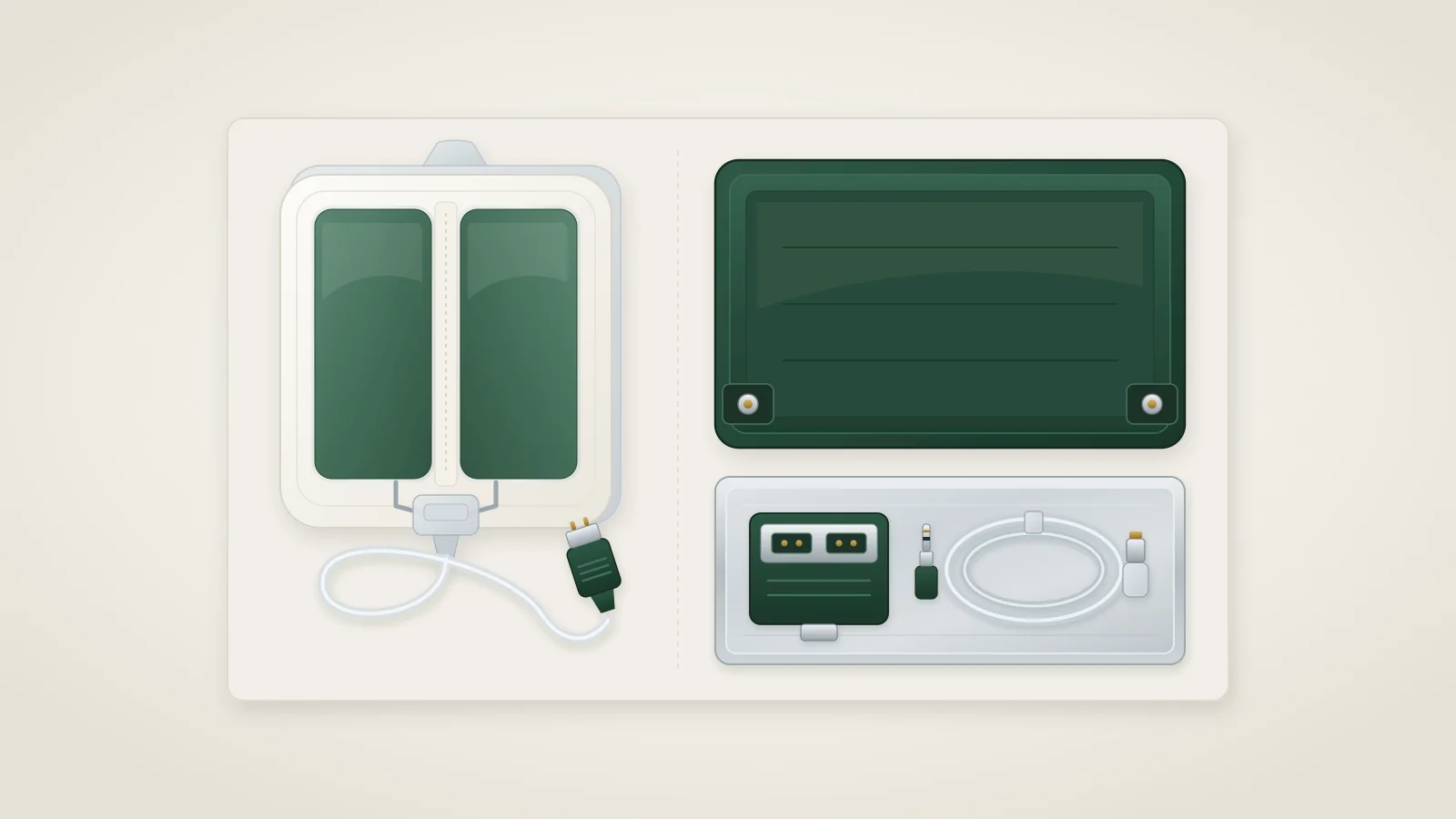

That is why return-electrode selection is a hardware-interlock decision rather than a size or adhesive comparison. A non-split pad gives the generator no second zone to measure against. A large reusable capacitive underbody pad (such as Megadyne MEGA SOFT) changes the coupling mechanism entirely: El-Sayed et al. (2024) write that the large capacitive design "avoids the need for CQM with nearly no risk for dispersive electrode burns"—a statement to read alongside FDA's 2023–2025 recall actions, which followed burn reports with Megadyne's reusable pads. Two constraints follow for fleet standardization:

Even within one manufacturer's disposable adhesive pad family, contact-monitoring capability and patient size are separated by catalog number. Just as scalpel blade and handle fitment or barrier-film versus antiseptic skin-prep wipes can go wrong when buyers order by family name instead of exact SKU attributes, ordering a "Valleylab PolyHesive pad" without the order code can deliver a non-monitored pad to a REM-monitored operating room.

Medtronic's current Valleylab PolyHesive corded patient return electrode page separates the family into four tiers by order code:

• Non-REM corded PolyHesive (E7506-): Described as "Valleylab PolyHesive patient return electrode, 9' (2.7 m)", 50 per box, with no REM in the description. Do not treat it as a drop-in substitute wherever a generator requires a REM electrode.

• REM adult (E7507 and E7507-DB): Valleylab REM PolyHesive adult patient return electrodes, 50 per box. The suffix changes the cord: 9 ft (2.7 m) for E7507, 15 ft (4.6 m) for E7507-DB.

• REM infant (E7510-25 and E7510-25DB): Valleylab REM PolyHesive infant electrodes, 25 per box, with the same 9 ft / 15 ft cord split; Medtronic lists the infant size for patients less than 30 lb.

• REM neonatal (E7512): Valleylab REM PolyHesive neonatal hydrogel pad with a 9 ft (2.7 m) cord, 12 per box; Medtronic lists the neonatal size for patients less than 6 lb.

The public page has a clear evidentiary boundary: it names order codes, cord lengths, the infant and neonatal weight bands, and the REM fault-deactivation function, but it does not list generator model numbers or show the FDA product code (Medtronic PolyHesive product page). For two-pad setups—which El-Sayed et al. (2024) report is recommended for high-current or extended-activation cases—Medtronic's accessories page lists the Valleylab E0507B multiple return/S cord adapter, which "enables use of two REM PolyHesive patient return electrodes or an S cord", alongside the monopolar adapters E0017 and E0502-1. The page does not say how a given generator's REM behaves with two pads on the adapter; that belongs in the generator manual review.

Reseller listings routinely omit monitor and cable constraints, and manufacturer web pages often omit generator lists. The map below records only what primary regulatory, manufacturer, or independent technical documents state, and marks the rest Unknown. Use it to audit item-master entries and to decide where supplier IFU documentation is needed before approving a SKU.

Cabling segments the reusable systems further. The 2018 Ethicon MEGA SOFT brochure lists four DetachaCable connector styles, each a separate order code: standard connector (M2K01 2.4 m, M2K02 4.4 m), phone plug (M2K03 2.4 m, M2K04 4.4 m), extended phone plug (M2K05, 4.4 m), and argon beam connector (M2K06, 2.4 m). It adds a replacement pigtail cable (M2K07) and the Reusable Compatibility Cable (M2K08 2.4 m, M2K09 4.4 m). Its dual-cord pads carry two electrosurgical connectors so that one pad can serve two separate generators at the same time—each of which then has to meet the current IFU restrictions.

Generic claims are easy to find; model-level records are not. The clearest public example is an appendix to the Cedar/NICE EP141 assessment: Megadyne's "MEGA 2000 and ReCORDable Generator Compatibility and Adapter Requirements" list, dated 5 January 2012. It names generator models, says whether each is isolated, and gives the cable or adapter each needs beyond the standard M2K-01 cord. The 2018 brochure footnotes its own "compatible with major brands of isolated electrosurgical generators" claim to an October 2018 version of the same document, held as data on file. The 2012 rows below are historical—they predate the 2023–2025 FDA actions and current generator platforms—but they show the format a buyer should ask for:

Two points carry over to today's buying decision. First, the list shows that compatibility can turn on generator model, on cable, and even on operating mode—"major brands" language cannot capture that. Second, Cedar recorded that Megadyne offered a certificate for generators not on the list, and the assessment states that it is the end user's responsibility to obtain written confirmation of compatibility between generators and related consumables. Ask for the current list and any certificate in writing, and remember that FDA now restricts these pads to isolated monopolar generators and excludes RF ablation (FDA letter).

flowchart TD
  A["List installed ESUs by manufacturer and model"] --> B{"Isolated monopolar output? Any RF ablation use?"}
  B -->|"RF ablation or non-isolated ESU"| C["Exclude Megadyne reusable pads; verify single-use pad IFU"]
  B -->|"Isolated monopolar ESU"| D{"Which return-path protection is required?"}
  D -->|"Split-pad CQM/REM or active electrode monitoring"| E["Select REM split-pad SKU by size: E7507 adult, E7510-25 infant under 30 lb, E7512 neonatal under 6 lb"]
  E --> F{"Two pads planned for high current or long activation?"}
  F -->|"Yes"| G["Verify dual-return adapter such as Valleylab E0507B plus two REM pads"]
  F -->|"No"| H["Verify cord length and model-level supplier documentation"]
  D -->|"Reusable capacitive pad considered (no CQM contact-area warning)"| I{"Patient age and code status"}
  I -->|"Under 12 years, or code 0840"| J["Stop: 0840 not for any age; reusable Megadyne codes 12+ only"]
  I -->|"12 or older, code 0845-0848"| K["Verify cable or compatibility cable, written generator list, no-sheet rule, expiry date"]
  G --> L["Record 510(k), product code, IEC 60601-2-2 edition and UDI in item master"]
  H --> L
  K --> L

Since June 2023, Megadyne has initiated four voluntary recalls covering Mega 2000 and Mega Soft return electrodes after reports of burn injuries in pediatric and adult patients and health care providers (FDA letter). Most actions corrected instructions; one removed a product. Materials-management teams therefore need to audit warehouse stock and clinical par locations by exact catalog code:

• Class I recall Z-0600-2024 on 0848 (initiated December 8, 2023): FDA's recall record for the MEGA SOFT Universal Plus Dual Patient Return Electrode (0848, 510(k) K233644, UDI-DI 10614559104859) cites reports of patient burn injuries up to and including third-degree burns requiring intervention in pediatric and adult patients, with the cause still listed as under investigation by the firm. The affected codes were limited to patients 12 years and older. From September 2024 the firm reminded consignees of the age limit and that the eIFU says no additional materials (for example, no sheet) should be placed between the patient and the Mega Soft pad. On March 17, 2025 it announced a voluntary replacement program for pads printed with the 12+ indication instead of the earlier 0.35 kg (0.8 lb) marking.

• Correction of 0800, 0830, and 0835 (customer letter June 17, 2024): FDA's correction notice for MEGA 2000 (0800), MEGA SOFT (0830), and MEGA SOFT Dual (0835) reports 15 injuries and no deaths, with burns especially in children under 12, and identifies the recall as the most serious type. It updated instructions rather than removing devices: do not use these pads in patients under 12, even though they are labeled for any patient weighing more than 25 lb. The same notice carries the September 2024 no-sheet update.

• FDA Letter to Health Care Providers (July 31, 2024; updated March 2025): FDA's letter on safe use of Mega 2000 and Mega Soft return electrodes, issued together with Health Canada, consolidates the recommendations:

  1. 0840 is out: Mega Soft Pediatric (0840) was recalled (removed) in May 2024 and must not be used in any age group.

  2. 12+ overrides pad printing: 0800, 0830, 0835, 0845, 0846, 0847, and 0848 are for patients 12 years and older, even where pads are printed ">0.35 kg (>0.8 lb)" or ">25 lb (>11.3 kg)". Customers could request Universal and Universal Plus replacements with updated printing until June 15, 2025; existing pads may still be used on patients 12 and older.

  3. Three codes discontinued: Megadyne stopped manufacturing and distributing 0800, 0830, and 0835; unexpired supplies can still be used until their indicated expiry dates. FDA describes Mega Soft as a 24-month and Mega 2000 as an 18-month reusable electrode.

  4. Generator and procedure limits: Electrosurgical use is restricted to isolated monopolar electrosurgical generators, and the pads are not intended for radiofrequency ablation.

For item-master blocking and goods-receipt checks, the FDA letter publishes a device identifier for every affected code:

Search for return-electrode specifications or cable part numbers and you will find cached distributor PDFs that predate the 2023–2025 actions. A concrete example is the 2018 Ethicon Endo-Surgery (Europe) MEGA SOFT brochure, still hosted on a distributor server, while Megadyne's updated instructions are distributed through an electronic IFU service (FDA recall record).

Set against the FDA record, the brochure conflicts on three fields that would cause compliance and safety failures if copied into a purchasing specification or setup card:

Generic phrasing such as "compatible with major brands of isolated electrosurgical generators" is not sufficient evidence for a SKU switch. In the Cedar/NICE assessment, Cedar recorded the UK Medicines and Healthcare products Regulatory Agency (MHRA) position, given as a personal communication, that provided companies can supply documentation confirming compatibility with specified goods including generators—ideally indicating relevant model numbers—users are free to use appropriate products from any manufacturer. The assessment was completed in January 2012 for the UK NHS, before the 2023–2025 FDA actions and the current IEC 60601-2-2 edition, so it does not describe today's market. Its documentation principle is still a practical benchmark for any facility.

Before onboarding an alternative single-use dispersive electrode, replacing phased-out reusable pads, or consolidating return cords and adapters across operating rooms, require the supplier and internal clinical engineering team to complete this six-point verification checklist:

1. Inventory every host generator by model number and energy mode: List each electrosurgical unit by manufacturer and model. Record whether it has isolated monopolar output, whether it is used for radiofrequency ablation (which excludes Megadyne reusable pads per the FDA letter), and whether active electrode monitoring is in use (which works with split dispersive pads but not capacitive ones per El-Sayed et al., 2024).

2. Match the monitor requirement at SKU level: Where generators rely on split-pad monitoring, lock the item master to REM order codes such as Medtronic's E7507, E7510-25 (infant, under 30 lb), or E7512 (neonatal, under 6 lb), and block non-REM codes such as E7506- from substituting into monitored sets (Medtronic PolyHesive). Specify cord length as well: the -DB variants carry a 15 ft cord. Where reusable capacitive pads stay in service for patients 12 and older, document clinical engineering sign-off that the generator's CQM system will not warn of reduced contact area (Cedar/NICE EP141).

3. Specify the adapter and cable part numbers: Where two dispersive electrodes are planned for high-current or extended-activation work (El-Sayed et al., 2024), confirm that the dual-return adapter—for example the Valleylab E0507B—is stocked and paired only with REM PolyHesive pads or an S cord. For reusable capacitive pads, specify the exact DetachaCable connector (M2K01–M2K06) and whether the Reusable Compatibility Cable (M2K08/M2K09) is needed for the target generator (2018 brochure); Megadyne's 2012 list, for example, required M2K-08 or M2K-09 for the Valleylab Force Triad (Cedar/NICE EP141).

4. Verify the 510(k), product code, and IEC 60601-2-2 edition: Confirm the device's 510(k) number and classification code (ODR or GEI under 21 CFR 878.4400), such as K233644 for Megadyne 0846/0847/0848. Where a catalog page does not show the product code, pull it from the 510(k) or GUDID record. Check whether the supplier's declaration of conformity cites IEC 60601-2-2 Edition 6.1 (recognition 6-521) or Edition 6.0 (recognition 6-389, accepted by FDA in premarket submissions only until July 1, 2029).

5. Capture UDI, pad printing, and expiry at goods receipt: Following the workflow in our guide to UDI and GUDID label capture for medical consumables, record the device identifier (DI), lot or serial number, and expiration date at receipt. For Megadyne reusable pads, use the FDA-published DIs above to quarantine any 0840 pad, flag 0845–0848 pads that still carry the old 0.35 kg printing so users apply the 12+ restriction, and track the indicated expiry of remaining 0800/0830/0835 stock (FDA letter).

6. Put model-number compatibility and change notice into the quality agreement: As covered in our guide to quality agreements for consumable suppliers, require the manufacturer or distributor to provide written compatibility documentation naming specific generator models (the position recorded in Cedar/NICE EP141), plus the current dated eIFU, and to give advance written notice of changes to pad or hydrogel specifications, connectors, age or weight labeling, or recall and field-correction status.

This specification guide is written for hospital procurement, value-analysis, distributor catalog, and supplier-quality teams. It does not provide clinical patient-positioning instructions, anatomical pad-placement technique, skin-preparation protocols, electrosurgical generator power settings, or burn diagnosis and treatment guidance. All patient age thresholds (12 years and older for Megadyne reusable pads), weight bands (under 30 lb for E7510-25 infant pads; under 6 lb for E7512 neonatal pads), and setup constraints (no sheet or other material between patient and reusable capacitive pad; isolated monopolar generators only; exclusion from RF ablation) are reported strictly as regulatory and manufacturer-labeled scope boundaries that govern SKU selection and item-master controls.

No independent electrical impedance testing, contact-heating measurement, price survey, or vendor ranking was performed for this article. Where public manufacturer catalog pages omit generator model numbers, or where compatibility claims rely on non-public data on file, the combination is recorded as Unknown until verified against the current manufacturer IFU. The January 2012 Megadyne generator list is reproduced as historical evidence of what model-level documentation looks like, not as a current compatibility statement. Regulatory classifications, 510(k) records, consensus standard recognitions, and recall statuses were checked on October 14, 2026; because current Megadyne instructions are distributed through an electronic IFU service, buyers should check the live IFU and FDA recall database entries before contracting or clinical release.
