Sterilization Pouch Sizes: Check Usable Space Before You Buy

To choose a sterilization pouch size, establish its usable space and apply the limits in the instructions for the exact product. A requisition line such as 3.5 × 9 in or 9 × 23 cm supplies two size labels; it does not explain their measurement boundaries or prove that an instrument fits after closure. Cardinal Health's pouch IFU calls for selecting a compatible pouch for both the sterilization method and instrument size. Get the dimensional definition and load restrictions before turning a catalog size into an approved purchasing specification.

This guide helps buyers and sterile-processing leads standardize pouch sizes. It compares published clearance and load limits, identifies dimensional information missing from the cited catalogs, and gives a record for deciding whether a candidate SKU has enough supporting evidence. Closure format and sealing-process validation are covered in our self-seal vs heat-seal guide.

The public EN 868-5 preview contains the 2018 European text, adopted as SIST EN 868-5:2019. It describes pouches made from a porous web and plastic film, sealed on three sides, and reel material sealed along its parallel sides. These construction requirements explain why edge and closure geometry matter. They do not define the dimension convention used in every manufacturer's catalog or supply the finished cavity dimensions of a particular SKU.

Five features belong in the dimensional evidence you request:

• Side seals. The preview gives a 6 mm minimum overall seal width; for ribbed seals, the rib widths are summed. Actual bands, gaps and their positions require a drawing or sample. The minimum is not a measured border width for every pouch.

• Peel end. The preview requires sufficient material beyond the widthwise seal to let the webs separate for peeling. It also specifies notch or lip features. These features are part of the end geometry, not automatically separate amounts to subtract from a catalog length.

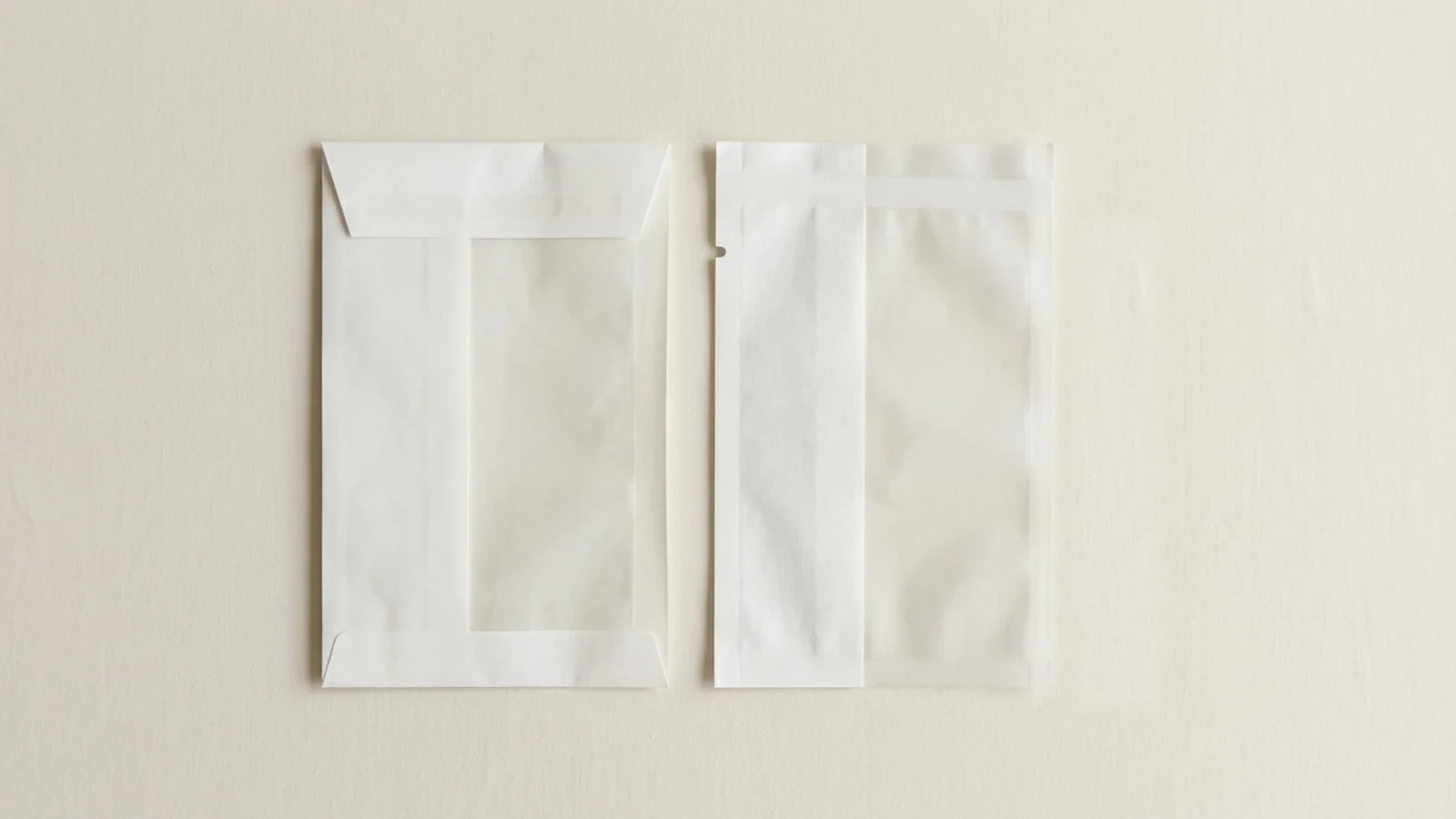

• Closure zone. Getinge describes three heat-sealed sides and a fourth side closed by an adhesive strip, with a pre-fold design. Ask whether the listed length includes the flap and what usable length remains when it is closed.

• Heat-seal placement. For a pouch closed by the facility, the intended seal position matters as well as the seal width. Obtain the product-specific closure instructions and dimensional definition.

• Tubing opening allowance. Cardinal Health specifies an opening area along heat-sealed tubing ends of approximately 0.75 to 1.125 in (20 to 30 mm). The note does not give a finished-cavity formula. Ask how that opening area relates to the seal and the cut edge before converting it into a length deduction.

Use the following table as a request for product evidence. Ask for a dimensioned drawing where possible, with the measurement boundaries marked. A size label, a conformity statement and a sample measurement answer different questions; keeping them separate prevents an assumed clearance or flap allowance from becoming a supplier specification.

These sources have different roles. Cardinal Health supplies a product IFU; STERIS provides manufacturer education; maxill publishes a supplier blog; Getinge supplies a product page. Read the figures as attributed statements, and obtain the applicable current IFU for every SKU under consideration.

• Cardinal Health IFU, Rev. G 2018-08. The cited document specifies no more than 3/4 of packing volume and at least 1 inch of area around all four sides of the enclosed items. It gives a 2.64 lb (1.2 kg) maximum validated pouch load and restricts the pouches and tubing to medical products without lumens. Confirm that this hosted revision applies to the product being supplied.

• STERIS educational guide, September 2021. The guide gives 1 inch around the item and a maximum 75% packing volume. It describes lightweight, low-profile items and warns about heavy metal instruments. It directs readers to the manufacturer's IFU; these published tips do not establish another vendor's validated load limit.

• maxill supplier blog. Its sizing article describes approximately ¼ to ½ inch of circumferential space. This is evidence of different published advice, not an IFU-backed alternative to Cardinal Health's requirement.

• Getinge product page. The page publishes construction details and a size ladder, but no numerical clearance, fill or load-weight limit. These fields are unreported on that page; it does not follow that the products have no such restrictions.

Do not average these figures or use the lower blog recommendation to override an IFU. If a supplier leaves a field unanswered, record it as unknown and request clarification for the exact SKU. A missing field is a reason to keep the size decision open, rather than to copy a number from another product family.

A useful purchasing method starts with the item, then establishes the usable pouch envelope. The steps below are a proposed procurement worksheet, not a substitute for packaging or sterilizer instructions. Physical fit, permitted contents and process compatibility must all be supported before a SKU is standardized.

1. Record the intended contents. List the item or set, total weight, maximum length, width and thickness, and any features relevant to the IFU such as lumens. Include accessories that will be packed with it. Record the configuration specified by the device instructions; CDC notes that hinged instruments are generally packaged open.

2. Obtain the exact product instructions. Record vendor, SKU, revision, permitted items, clearance, fill, load and configuration limits. If a required value or its measurement boundary is unclear, request a written explanation.

3. Establish the usable dimensions. Use the supplier's drawing and closed-pouch dimensions. Keep the catalog size beside them for identification, but do not substitute the EN 868-5 minimum for the actual geometry.

4. Compare the item envelope with the documented space. Apply clearance as the supplier defines it. Length and width are screening dimensions; the item's thickness and shape still need review. A packing-volume limit cannot be verified as a percentage of flat area.

5. Review a representative sample with sterile processing. Record the observed clearance, closure alignment and any pressure on seals. Use the intended configuration under the applicable instructions. The result supports a physical-fit assessment; it does not establish sterility, sealing-process validation or device compatibility.

6. Close the purchasing decision only when the evidence is complete. Keep unanswered fields visible. For a failed sample, establish whether the cause is dimensions, closure, configuration or an item restriction before requesting another size.

flowchart TD
    A["Record intended contents and packed dimensions"] --> B["Obtain SKU IFU and usable-dimension evidence"]
    B --> C{"Evidence complete and intended use supported?"}
    C -- No --> D["Request clarification or review another supported product"]
    C -- Yes --> E["Compare dimensions and review representative sample"]
    E --> F{"Documented physical fit acceptable?"}
    F -- No --> G["Identify the cause before changing size or configuration"]
    G --> B
    F -- Yes --> H["Record fit evidence with device and process compatibility evidence"]

A sample record should distinguish an observed result from a supplier-confirmed limit. For example, seeing an item fit inside a pouch does not tell you whether the IFU measures clearance to the seal boundary or the outer edge. Nor does it reveal the usable-dimension tolerance across production. Resolve that definition before using a worksheet to accept future deliveries.

The narrow sizes in a catalog make clarification especially useful. The Cardinal IFU includes 2 in tubing alongside its 1-inch clearance wording. That combination warrants a question about how the rule applies and where it is measured. It does not justify inventing an exception or declaring that the product has zero usable width. Ask the manufacturer to reconcile the wording for the proposed contents and SKU.

Suppose an item's intended packed footprint is 6.0 × 2.25 in. If the supplier confirms that its 1-inch rule means clear space between the item and the usable cavity boundary on every side, the planar space required would be 8.0 × 4.25 in: add 2 inches to each item dimension. This is conditional arithmetic, not a definition supplied by the cited Cardinal IFU, which does not identify that measurement boundary. Thickness and fill restrictions remain separate checks.

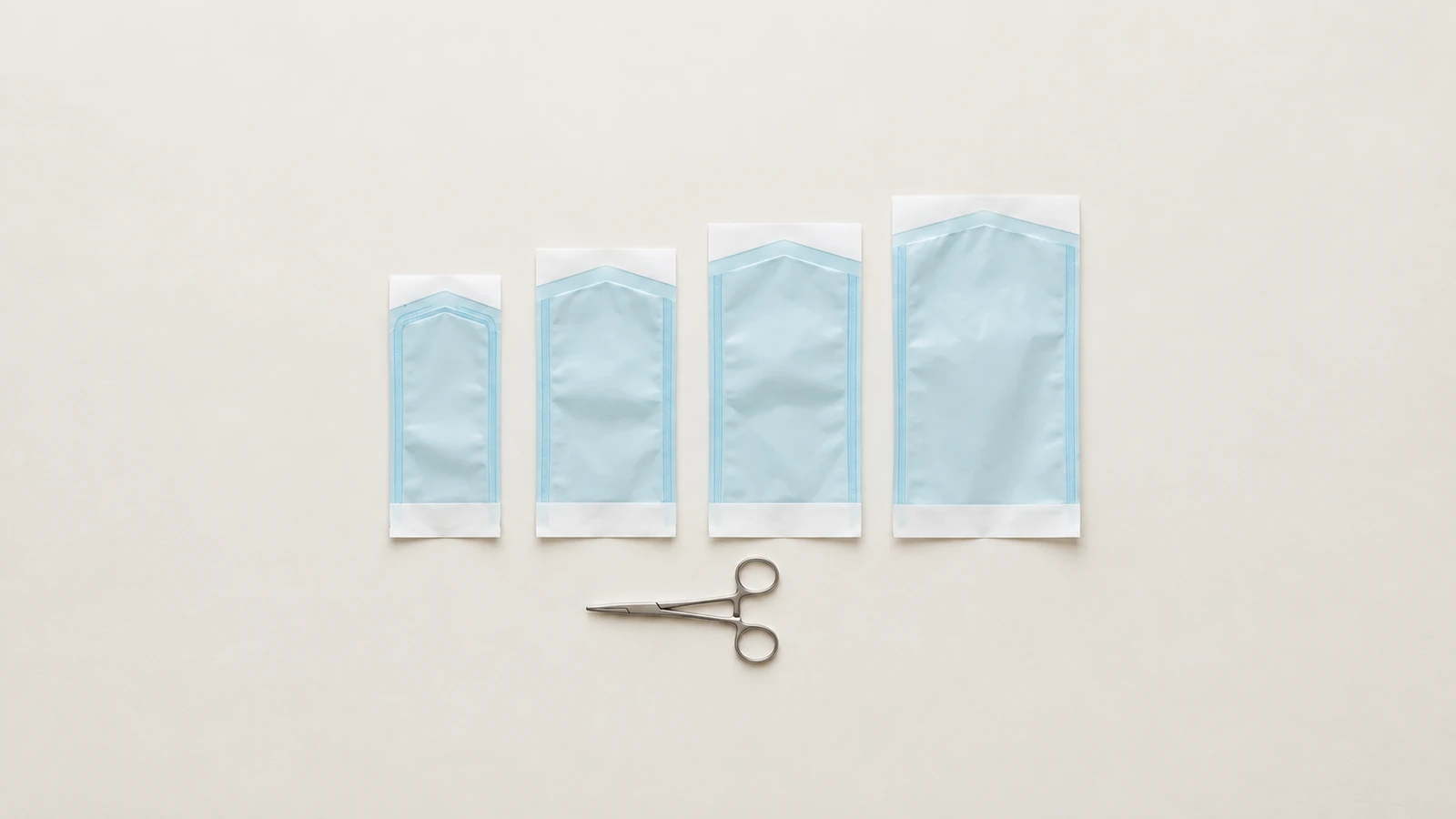

• Use catalog sizes to shortlist. Cardinal Health lists a 5.5 × 10 in paper self-seal pouch and a 6 × 10 in paper heat-seal pouch. These nominal sizes are candidates for requesting drawings and samples; this calculation cannot approve either one.

• Request the missing dimensions. Ask for closed usable width and length, the clearance boundary and the flap or seal-placement allowance. If the listed dimensions turn out to be usable dimensions already, subtracting seal widths again would count them twice.

• Keep the cross-vendor comparison limited. Getinge lists a 14 × 28 cm self-seal pouch, approximately 5.51 × 11.02 in. Unit conversion identifies a nearby listed size, but Getinge's page lacks the fit limits needed to assess the same item.

The following catalog examples come from the cited Cardinal Health IFU and Getinge product page. HS means heat-seal and SS means self-seal. The groups organize listed dimensions by approximate width, with long formats and tubing shown separately. They do not express usable cavity dimensions, suitable instrument families or equivalent products. Cardinal's cited paper line is labeled for steam or ethylene oxide; its low-temperature line is labeled for ethylene oxide only. These are product-family indications, not permissions for every pouch made of the same material. Confirm current availability and the dimension definition with the supplier.

A listed size available in one material or closure format may be absent from another. For example, Cardinal's 5.5 × 10 in paper self-seal size has no identical low-temperature size in the cited table. Also, a request for 3.5 × 9 in is not an exact match for Cardinal's 3.5 × 8.75 in or 3.5 × 9.875 in, or Getinge's 9 × 23 cm (approximately 3.54 × 9.06 in). Preserve the vendor's stated size and SKU, and put usable-dimension and fit requirements in separate tender fields.

Roll stock allows a length to be selected rather than taken from a preformed-pouch ladder. Its width still has to suit the item and applicable clearance. Cardinal's tubing note calls for an opening area of approximately 20 to 30 mm along heat-sealed ends. It does not specify every seal position or the finished usable length of a selected cut. Request a drawing or manufacturer clarification that shows the cut edge, seal and opening allowance, and have sterile processing document the intended geometry under its packaging procedure. A cut length alone is incomplete purchasing evidence.

STERIS explains that AAMI and AORN guidance does not require double peel pouching for operating-room use, although facilities may request it for presentation of small items. Where double pouching is selected, its acceptability and the size pair need product-specific evidence.

• Confirm the supported configuration. The cited Cardinal IFU covers single or double pouch configurations. STERIS advises checking the IFU and facility policy even when the manufacturer has validated double pouching.

• Establish the sealed inner footprint. Cardinal Health specifies a sealed inner pouch that fits inside the outer without folding, citing ST79 Section 8.3.4 and Figure 8. Measure its footprint after closure; do not assume that the catalog length equals the closed length.

• Record the orientation requirements. Cardinal specifies matching paper to paper and film to film. STERIS also describes film-to-film orientation and an unfolded inner pack. Keep these attributed requirements with the approved pair.

• Resolve outer-pouch limits. Ask how clearance, fill and load limits apply to the sealed inner pouch in the intended double configuration. The cited sources do not supply a universal formula for choosing the outer SKU.

Do not approve a pair by adding a standard seal-width minimum to the inner pouch's catalog dimensions. The relevant evidence is its closed footprint, the outer pouch's actual usable space and the supported configuration. Record both SKUs as a pair so an alternative outer pouch receives its own fit review rather than being treated as equivalent solely because it is larger.

The rack or basket footprint is another purchasing constraint. CDC's guidance describes peel packs on edge in perforated or mesh-bottom racks or baskets. Cardinal's IFU discusses racks to avoid stacking, while STERIS describes flat or on-edge arrangements. The department should resolve the arrangement against applicable device, pouch and sterilizer instructions; a buyer should not select an orientation from a catalog size alone.

• Record the available equipment. Keep the rack or basket model and its usable dimensions with the proposed pouch size.

• Review the intended arrangement. Ask sterile processing whether the selected length and profile can be accommodated under the applicable loading instructions.

• Keep layout approval distinct from fit. A pouch that holds the item still needs a supported place in the department's process.

This helps distinguish a dimensional purchasing problem from a loading-plan problem. A longer pouch may solve the item-length question while creating a different rack-fit question. Record both constraints in the same candidate-SKU review.

Regulatory and standards records support the supplier file, but they do not supply an instrument-size chart:

• 21 CFR 880.6850. The regulation text describes sterilization wrap, including bags and packs, as a device for enclosing another device during sterilization and maintaining its sterility until use. It classifies the family as Class II.

• FDA product code FRG. The FDA record lists sterilization wrap as Class 2 under 880.6850, with a 510(k) submission type. Ask for the clearance and labeling applicable to the supplied product; the family classification alone is not evidence for an individual SKU's fit. Getinge's page states that its self-seal pouches are 510(k) cleared, but this article does not independently identify their clearance number.

• ISO 11607-1 recognition. FDA's record recognizes the 2019 edition including Amendment 1:2023 as Rec# 14-594. It accepts declarations to the earlier Rec# 14-530 in support of premarket submissions until 20 December 2026. Recognition is not a numeric pouch-clearance rule.

• EN 868-5. The public preview supports the construction requirements discussed above. Conformity with a seal-width requirement does not reveal the actual usable width of a cataloged pouch.

• ANSI/AAMI ST79. AAMI's catalog lists the 2017/(R)2022 guide with Amendments A1 to A4:2020. The packaging and loading references here are reported through Cardinal Health and STERIS, rather than quoted from the full paid standard.

Keep the purchasing record short enough to use and detailed enough to show why a size was selected. The following is a proposed record, not a new regulatory documentation requirement:

• Contents and configuration: item identity, packed length, width and thickness, total weight, and relevant IFU restrictions.

• Dimensional evidence: catalog size convention, actual closed usable dimensions, seal and closure geometry, tolerances supplied, and the clearance measurement boundaries.

• Instructions of record: vendor, SKU, document number and revision, plus clearance, fill, load and item restrictions. Confirm that a hosted older IFU applies to the delivered product.

• Process and configuration support: the applicable device, pouch and sterilizer instructions, and the approved inner/outer pair where relevant.

• Sample observations: sample identity, reviewer, measured fit and closure observations, clearly distinguished from validation or compatibility evidence.

• Open questions: every unreported or ambiguous field, the supplier response requested and the date of clarification.

If the supplier changes a listed dimension, closure design or IFU revision, revisit the affected fit record before accepting the replacement SKU as equivalent. A unit conversion and a successful visual sample are useful parts of the comparison, but neither supplies missing instructions or product-specific process evidence.
